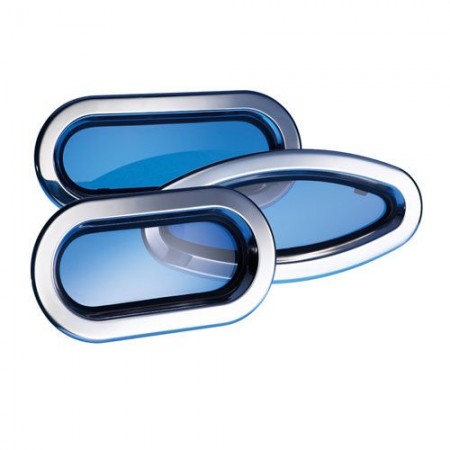

Stainless Steel Portlight Range

Hatches & Portlights

Lewmar Stainless portlights feature polished stainless 316 outer frame.
Inside the boat they are finshed with a chrome or white plastic trim.

The handles and hinges leave the lens clear of obstructions, giving it an uncluttered view and clean modern look.
Portlight handles apply the correct pressure evenly onto the seal in the closed position.
Portlight handles are unable to vibrate open when in the closed position.

Flyscreens are supplied as standard CE Approval
All Stainless Portlights presented on the website are CE Approved to the following levels
Sail Boat ; Catagory "A", Area 2a
Power Boat; Catagory "B" Area 1

Notes:

Mounting Instructions:

Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
Portlights should be fitted to a flat surface with a maximum tolerance of 1mm
Maximum hull thickness 30mm
Minimum hull thickness 9mm
Portlight opening is restricted on very thick hulls. Opening angle at 21mm hull thickness is 165.
All Portlights supplied with M5 x 20 screws (hull thickness 12-17mm)
Complete with flyscreen
Part Number: N/A
Size: Size 0, 1, 1RE, 7RE & 8
