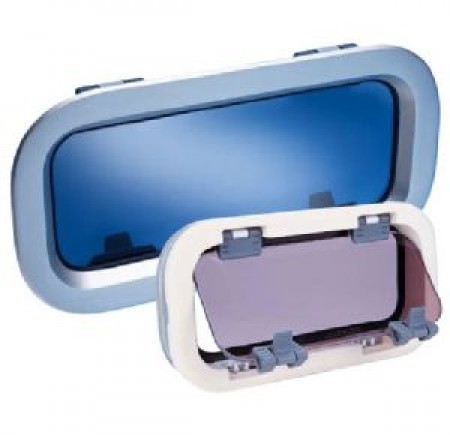

Standard Portlight Range

Hatches & Portlights

A perfect match for any hatch in the Lewmar range,
the Standard Portlight is stylish, competitively priced and easy to both use and install.

Features:

ABS Plastic Trim
Can be installed with sealant or closed cell PVC tape
Cut out shape available from www.lewmar.com
Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
Trim with clean styling
Complete with flyscreen (except sizes 4L and 4R)

Notes:

Installation

Fast and easy installation with no complicated cut-out shape.
Portlights should be fitted to a flat surface with a maximum tolerance of 1mm
Maximum hull thickness 34mm (1 3/8 in), minimum hull thickness 7mm (1/4in)
Acrylic color is Smoke Grey
All Portlights are supplied complete with 12 off M5 25mm screws (hull thickness 17-25mm)

Design category A - Sail & Power, Area 2 CE Approved
Part Number: N/A
Size: Size 0 to Size 7RE
